 Characteristic
Compressed Non-Asbestos Joint Sheet Special heat-resistant fiber
and oil resistant rubber are compounded and calendered into a non-
asbestos gasket sheet with a oil/fuel-resistant property. It shows low
creep relaxation. Suitable for a wide range of fluids such as fuel,
lubricating oil, animal oil, vegetable oil, organic solvents. |
| |
|
| |
|
| |
Typical Physical Properties
* Color : Blue
* Binder : NBR
* Temperature : 260℃ Max
* Water, Hot Water, Hot Oil, Oil Gas,
Salt
Solution
|
* Fibers : Aramid Fiber
* Pressure : 30kgf/㎠ Max
* Lubricating Oil, Fuel, Animal Oil, Organic
Solvents, Etc.
|
|
| |
Application Standards
KS L 5406 Class A / JIS R 3453 Class A
ASTM F 104 P1141A |
| |
Standard sizes
* Sheet Size :
1270mm×1270mm, 1270mm×3850mm
* Thickness : 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm
* Tolerance : hickness : < 1.0㎜±0.1㎜, ≥ 0.1㎜±10%
Length, Width : ±50㎜
|
|
| |
Aramid Fiber
Aramid fiber reinforced gaskets are simply applied everywhere, So in the chemical industry, power plants,
automobiles, etc.
These composite materials mainly consist of reinforcing fibers, fillers and rubber.
Aramid fibers have considerable influence on the processing of gasket materials and their properties
|
| |
| Pressure/Temperature Operating Gidelines |
| |
 |
| |

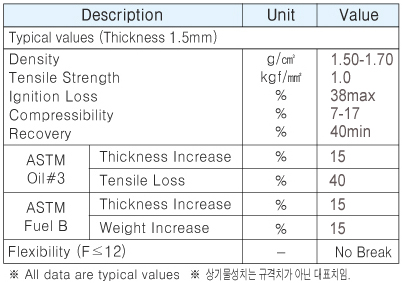

| Technical data |
| |
 |
|
| |
| |
| |
|
|
