 Characteristic
High quality non-asbestos fiber and excellent heat/oil resistant
rubber are compounded and calendered into a gasket sheet with
superior chemical resistance. Especially it shows a good sealing
performance under hot oil, oil gas, etc
|
|
| |
|
| |
Typical Physical Properties
* Color : Black
* Binder : NBR
* Temperature : 480℃ Max
* Water, Alkalis, Salt Solution : 30kgf/㎠, 320℃ Max
* Hot oil, oil gas, freon gas : 30kgf/㎠, 300℃ Max
* PH Range : 4~11
|
* Fibers : Carbon Fiber + Aramid Fiber
* Pressure : 60kgf/㎠ Max
* Good resistance to oils, water, fuels,hot oils, steam,
salt solution, mild acids and alkalis.
* Organic Solvent : 25kgf/㎠, 250℃ Max
* When application of steam-line, please consult to
our Technical Team in Advance.
|
|
| |
Application Standards
KS L 5406 Class B / JIS R 3453 Class B
ASTM F 104 P1141A |
| |
Standard sizes
* Sheet Size : 1500mm×1000mm, 1500mm×2000mm, 1500mm×4000mm
* Thickness : 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm
* Tolerance : Thickness : < 1.0㎜±0.1㎜, ≥ 0.1㎜±10%
Length, Width : ±50㎜
|
|
| |
Aramid Fiber
Aramid fiber reinforced gaskets are simply applied everywhere, So in the chemical industry, power plants,
automobiles, etc.
These composite materials mainly consist of reinforcing fibers, fillers and rubber.
Aramid fibers have considerable influence on the processing of gasket materials and their properties
|
| |
| Pressure/Temperature Operating Gidelines |
| |
 |
| |

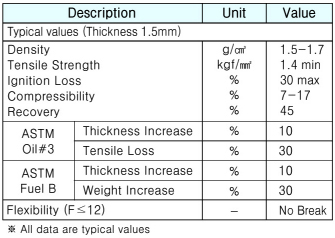

| Technical data |
| |
 |
|
| |
| |
| |
|
|
