 Characteristic
This is a product using good-quality non-asbestos textile and
synthetic rubber of excellent oil-resistance which is equivalent to
TH3000 minimizing adherence with flange surface after gasket use
by graphite surface treatment. |
|
| |
|
| |
Typical Physical Properties
* Color : Black
* Binder : NBR
* Temperature : 350℃ Max
* Organic Solvent : 20kgf/㎠, 200℃ Max
* PH Range : 4~11 |
* Fibers : Aramid Fiber
* Pressure : 30kgf/㎠ Max
* Good resistance to Hot Oil, Fuels, Water,
Water, Alkalis, Salt Solution : 30kgf/㎠, 200℃ Max
* Hot oil, oil gas, freon gas : 20kgf/㎠, 200℃ Max |
|
| |
Application Standards
KS L 5406 Class B / JIS R 3453 Class B
ASTM F 104 P1141A |
| |
Standard sizes
* Sheet Size : 1270×1270mm 1270×3850mm 2540×3850mm
* Thickness : 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm
* Tolerance : Thickness : < 1.0㎜±0.1㎜, ≥ 0.1㎜±10%
Length, Width : ±50㎜
|
|
| |
Aramid Fiber
Aramid fiber reinforced gaskets are simply applied everywhere, So in the chemical industry, power plants, automobiles, etc.
These composite materials mainly consist of reinforcing fibers, fillers and rubber.
Aramid fibers have considerable influence on the processing of gasket materials and their properties
|
| |
| Pressure/Temperature Operating Gidelines |
| |
 |
| |

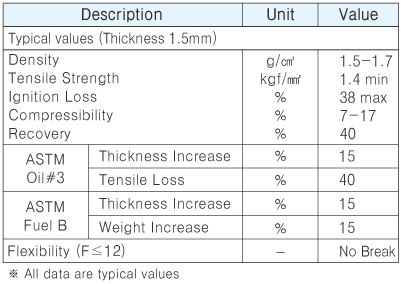

| Technical data |
| |
 |
|
| |
| |
| |
|
|
