 Characteristic
This is an excellent quality asbestos free gasket material with
stainless steel wire-mesh inserted to be suitable for high temperature
and high pressure. Manufactured by the hot calender process using
high quality non-asbestos fibers and oil-resistant rubber.
|
|
| |
|
| |
Typical Physical Properties
* Color : Green
* Binder : NBR
* Temperature : 400℃ Max
* Suitable for Water, Hot Oil, Oil Gas, Alkali,
Salt Solutions,
Solvents, Etc. |
* Fibers : Aramid Fiber
* Pressure : 100kgf/㎠ Max
* Not be Use in steam, Strong Acid and Alkali, Soluble
Chemicals.
|
|
| |
Application Standards
KS L 5406 Class B / JIS R 3453 Class B
ASTM F 104 P1141A |
| |
Standard sizes
* Sheet Size : 1500mm×1000mm, 1500mm×2000mm, 1500mm×4000mm
* Thickness : 1.0mm 1.5mm 2.0mm 3.0mm
* Tolerance : Thickness : < 1.0㎜±0.1㎜, ≥ 0.1㎜±10%
Length, Width : ±50㎜
|
|
| |
Aramid Fiber
Aramid fiber reinforced gaskets are simply applied everywhere, So in the chemical industry, power plants,
automobiles, etc.
These composite materials mainly consist of reinforcing fibers, fillers and rubber.
Aramid fibers have considerable influence on the processing of gasket materials and their properties
|
| |
| Pressure/Temperature Operating Gidelines |
| |
 |
| |

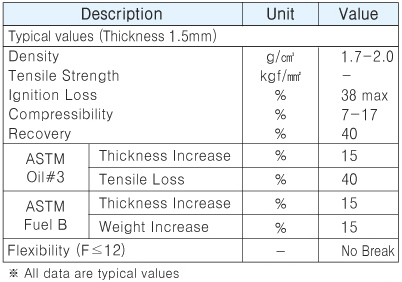

| Technical data |
| |
 |
|
| |
| |
|
|
