 Characteristic
This is non-asbestos which develops at existing asbestos
product(TH2200) substitution. Is a product which is suitable in the
general line which does not undergo a big influence in the water,
the fume, brine etc. In pressure and temperature.
|
|
| |
|
| |
Typical Physical Properties
* Color : Orange
* Binder : Synthetic Rubber
* Temperature : 150℃ Max
* Oxygenline, Steam line and Explosiveness,
Toxic Gas line does not apply |
* Fibers : Organic/Inorganic Fiber
* Pressure : 10kgf/㎠ Max
* Water, Oilfules, Salt Solution, Mild acids and alkalis
|
|
| |
Application Standards
Water Type Fluids : Below 10kg/㎠,
Oil Type Fluids : Below 10kg/㎠,
Oil Gas Type Fluids : Below 5kg/㎠
(Oxygen line, Steam line And Explosiveness, toxic Gas line does not apply) |
| |
Standard sizes
* Sheet Size : 1270mm×1270mm, 1270mm×3850mm
* Thickness : 1.0mm 1.5mm, 2.0mm 3.0mm
* Tolerance : Thickness : < 1.0㎜±0.1㎜, ≥ 0.1㎜±10%
Length, Width : ±50㎜
|
|
| |
Aramid Fiber
Aramid fiber reinforced gaskets are simply applied everywhere, So in the chemical industry, power plants,
automobiles, etc.
These composite materials mainly consist of reinforcing fibers, fillers and rubber.
Aramid fibers have considerable influence on the processing of gasket materials and their properties
|
| |
| Pressure/Temperature Operating Gidelines |
| |
 |
| |

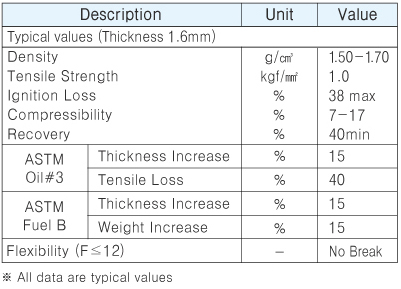

| Technical data |
| |
 |
|
| |
| |
| |
|
|
