 Characteristic
This product is the equivalent one to TH3000W, which is using
excellent non-asbestos textile and stainless steel wire-mesh,
inhibiting aherence with flang surface by graphitic surface treatment.
|
|
| |
|
| |
Typical Physical Properties
* Color : Black
* Binder : NBR
* Temperature : 400℃ Max
* Not be Use in steam, Strong Acid and Alkali,
Soluble Chemicals. |
* Fibers : Aramid Fiber
* Pressure : 100kgf/㎠ Max
* Suitable for Water, Hot Oil, Oil Gas, Alkali,Salt Solutions,
Solvents, Etc.
|
|
| |
Application Standards
KS L 5406 Class B / JIS R 3453 Class B
ASTM F 104 P1141A |
| |
Standard sizes
* Sheet Size : 1500mm×1000mm, 1500mm×2000mm, 1500mm×4000mm
* Thickness : 1.0mm, 1.5mm, 2.0mm, 3.0mm
* Tolerance : Thickness : < 1.0㎜±0.1㎜, ≥ 0.1㎜±10%
Length, Width : ±50㎜
|
|
| |
Aramid Fiber
Aramid fiber reinforced gaskets are simply applied everywhere, So in the chemical industry, power plants,
automobiles, etc.
These composite materials mainly consist of reinforcing fibers, fillers and rubber.
Aramid fibers have considerable influence on the processing of gasket materials and their properties
|
| |
| Pressure/Temperature Operating Gidelines |
| |
 |
| |

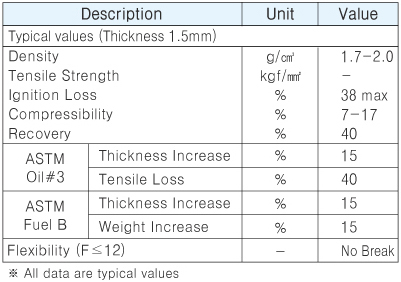

| Technical data |
| |
 |
|
| |
| |
| |
|
|
