Type |
Cross Section |
Applications |

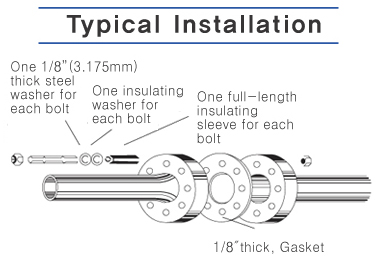

TH-4041A
Full face type |
Full-length sleeves, lnsulation
washers, full face lnsulating gasket.
|
Type TH 4041A gaskets are designed for full
protection of flanges and have the same outside
diameter as the flanges. Gaskets with slightly larger
outside diameters are availabe upon request. Each
Type TH 4041A gasket features precisely located bolt
holes for easy installation, Material choice is plain-
faced phenolic, neoprene-faced phenolic or JMRD-
81.
All gaskets are 1/8” thick. |
TH-4041B
Raised face type |
Full-length sleeves, lnsulating
washers, Faised face lnsulating
gasket.
|
Type TH 4041A gaskets are designed to Fit the
raised-face portion of flanges. The outside diameter
of the gasket is slightly smaller than the inside
diameter of the bolt hole circle.
The outside diameter is designed for alignment by
the insulation sleeves.
Material choice is plain-faced phenolic. Neoprene-
faced phenolic or JMRD-81. Type TH 4041B gaskets
are also 1/8” thick. |
TH-4041C
For RTJ
(Basic Oval or
Octagonal) |
Full-length sleeves, lnsulating
washers, lnsulating ring joint gasket. |
Type TH 4041C gaskets are made for the ring groove
of ring-type-joint flanges.
Material is medium-weave, fabric-reinforced
phenolic, manu factured to ANSI gasket dimension.
It is available in the basic oval shape or octagonal
shape. Integral sleeves and washer components are
nor recommended for use with Type TH 4041C
gaskets. |
