M-series gasket is used for the boiler manhole,
hand hole and valve bonnet cover. And it is designed
and manufactured to tolerate over 150LBS~2500LBS
pressure.
The 4065-M is manufactured with SUS304
for non-asbestos filler and the 4066-M is manufactured
with SUS316 for non-asbestos filler.
 Temperature for Use
4065-M:UP TO 500℃/4066-M:UP TO 580℃
The following information is required
to order custom-made gaskets..
1. Pressure
2. Temperature
3. Gasket Thickness(ex : 3.2㎜, 4.5㎜)
4. Hoop Material

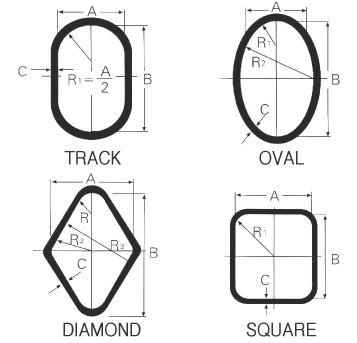

5. Shape and size
Note
1. R3 should be indicated for some oval-shaped
gaskets.
2. The “A” for oval-type and track-type should
be over 400mm.
3. A/B should be over 2/3
|
